Добро пожаловать на страницу, где вы можете пройти CES тест (Crew Evaluation Test) онлайн по теме «Electrical Electronic & Control» (электротехника, электроника и управление). Данная практика поможет вам, как морскому специалисту улучшить свои знания посредством электронного обучения и оценочной тренировки. Основанные на доказательных эмпирических данных и опыте морских специалистов, показательные и эффективные объединенные материалы CES тестов используются на практике в предметных областях.

Разработанные для оценки базовых знаний моряков CES тесты компании Seagull (после ребрендинга OTG) представляют собой онлайновый инструмент оценки, используемый для выявления потребностей в профессиональной подготовке, специфичных для областей знаний, определенных в ПДНВ.

Версия: 6.0.10.
Тип теста: STCW.
Департамент: Engine.
Уровень: Management.
Модуль: Electrical Electronic & Control.

В процессе отбора и набора персонала, а также для измерения уровня знаний существующих офицеров и экипажа, CES тест хорошо показал себя по всем параметрам. Ocean Technologies Group использовали для создания вопросов обширные темы, которые включают:

Управление кризисными ситуациями и скоплением людей;
Интегрированная навигационная система;
Управление балластными водами;
Обработка и укладка грузов;
Управление эксплуатацией судна и безопасностью;
Морская инженерия;
Техническое обслуживание и ремонт, и многие другие темы.

Данная страница содержит вопросы Seagull CES по теме «Electrical Electronic & Control», собранные из тестового симулятора как для проверки компетентности команды судна, так и для личного тестирования знаний.

Тема «Электроника и электротехника» включает в себя теоретическую и практическую информацию, знание которой напрямую показывает профессиональность работника, занимающего соответствующую должность на борту судна. Системы электротехники включают генерацию, передачу и распределение электрической энергии на судне. Системы электроники в машинном отделении судна представляют собой различные электронные устройства, такие как компьютеры, контроллеры, датчики, преобразователи и связующие устройства. Они обеспечивают контроль, мониторинг и защиту различных систем на судне, включая двигатели, системы охлаждения, системы пожаротушения и другие.

Crew Evaluation System Test на этой странице по теме «Electrical Electronic & Control» содержит 40 вопросов, на которые надо дать ответ без возможности вернуться и изменить его, поэтому, советуем внимательно читать вопрос и не торопиться. В случае с затруднениями в любом вопросе есть возможность запросить подсказку правильного ответа.

Отдельная благодарность JSEC и Mr Animesh из нашего Телеграм-канала за предоставленные вопросы и ответы к этому тесту.

Выберите режим, в котором хотите пройти CES тест:

Тренировочный

Аттестация

Ответы

Начать тест

Code: RTXB A 5 V DC source has an internal impedance of 0,2 ohms. When a load of 2,3 ohms is applied what voltage will be measured at the source terminals?

4,6 V.

5,2 V.

4,8 V.

5,0 V.

Принять ответ

Code: ACJL A triac is used to provide temperature control of an oven. The galley complain that the oven only reaches approximately 50 % of demanded temperature. Which of the following is a likely cause?

The voltage supply to the oven controller is reduced by about 50 %.

Connection between the demand knob and the triac gate terminal has gone open circuit.

One of the main switching elements in the triac has failed.

The triac has completely failed.

Принять ответ

Which of the following measures is to be taken when working with batteries?

Install alkaline and lead-acid batteries in the same compartment.

Recharge batteries immediately after discharge.

Add new acid electrolyte to batteries that are in use.

Keep the batteries in discharged state.

Принять ответ

Which of the following is an application of a piezoelectric sensor?

Tachometer.

Thermocouple.

Accelerometer.

I don’t know.

Принять ответ

What is the minimum starting requirement of an emergency generator?

3 separate starting devices each with stored energy capable for at least 3 consecutive starts.

1 set of starting device with stored energy capable for at least 3 consecutive starts.

2 separate starting devices each with stored energy capable for at least 3 consecutive starts.

2 separate starting devices each with stored energy capable for at least 4 consecutive starts.

Принять ответ

Code: RPHF When considering instrumentation systems, what is the meaning of the expression “dead-band”?

The controller will not react to a process change in this range.

The controller will is not respond to adjustment of set-point.

The controller will enter “sleep mode”.

It will take some time before the controller will react to a change.

Принять ответ

Which of the following is the minimum acceptable value of insulation resistance for High Voltage equipment?

100 M Ohms.

1 G Ohms.

1 M Ohms.

100 k Ohms.

Принять ответ

In tanker operations, there will be some areas and zones where flammable or explosive vapour, gas or dust may be expected. Such areas are classified as hazardous. What is meant by hazardous area Zone 1?

Flammable mixture would not normally be present or it would be present for a short period only.

Flammable mixture is not continuously present, but will be present during normal operations.

Flammable mixture is not present at all times.

Flammable mixture is continuously present or present for long periods.

Принять ответ

Code: BOKI Which of the following methods may a diode be tested by?

Use a Digital Multi-Meter set to check forward voltage and reverse current blocking.

Use an insulation resistance tester (Megger).

Use a Digital Multi-Meter set to measure ohms in forward and reverse directions.

Connect to low ohms resistance tester.

Принять ответ

Code: PDRS When performing electrical testing of a three phase motor, insulation resistance measurements may be influenced by which of the following?

Humidity, frequency and dampness.

Temperature, pressure and dampness.

Humidity, pressure and surface contamination.

Temperature, humidity and surface contamination.

Принять ответ

Flow irregularities in pipes are not caused by:

Throttling valve.

Elbow pipe.

Restrictive valve.

Straight pipe.

Принять ответ

Which of the following is not a mode of a closed loop control?

PID.

Manual.

Modulation.

On-off.

Принять ответ

A Multimeter is not suitable to measure:

Current.

Resistance.

Power.

Voltage.

Принять ответ

Code: OKWA Continuity testing of a delta connected three phase induction motor yields the following results; U1-V1 = 4 ohms, V1-W1 = 4 ohms, W1-U1 = 4 ohms. What is the value of continuity resistance for each winding ie. U1-U2?

2 ohms.

4 ohms.

6 ohms.

12 ohms.

Принять ответ

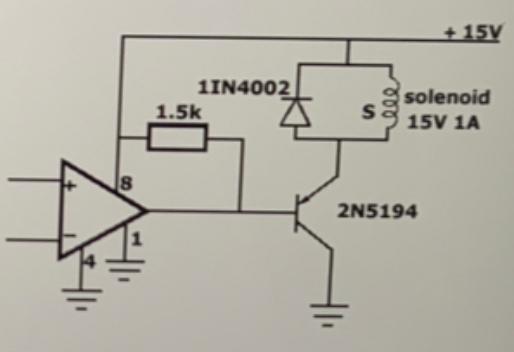

Code: KKHF Which of the following functions does the diode shown here perform?

Allow Op Amp to top up +15 V rail.

Return inductive current to supply at switch off.

Reference the transistor to +15 V.

Provide an overload route for transistor current.

Принять ответ

Which of the following is an application of an capacitive sensor?

Barometer.

Tachometer.

Proximity sensor.

Piezoelectric sensor.

Принять ответ

Code: FEYS Some ships generate electrical power at 440 Volts, but then step up this voltage to supply specific electrical equipment. One common example, may be to feed a large bow thruster. Why is this done?

A large bow thruster will draw very large currents at low voltage. Being typically remote from the generator, significant voltage drops would occur at low voltage.

The shipyard could not purchase High Voltage generating plant at the time of manufacture, so they used what was available at the time.

The overall ship’s electrical load does not justify High Voltage generating plant. This method allows more power to be delivered to the bow thruster at low running cost.

Manufacturers can supply High Voltage bow thrusters at less cost, and the power factor is improved.

Принять ответ

Code: BFGX In an automatic temperature control system, operating with a PID controller which of the following settings or parameter adjustments may result in system oscillation?

Gain too low.

Temperature change.

Too short D-time.

Gain too high.

Принять ответ

What are the main elements for Process Control?

Sensor, Modulation, Controller, Process.

Sensor, Controller, Noise, Final Control Element.

Resistor, Capacitor, Battery, Load.

Process, Sensor, Final control element and Controller.

Принять ответ

Following shows circuitry of a peak detector. What is the output voltage curve, Vo if Vi is a sinusoidal input curve?

Vo will peak when Vi is at the maximum, remain constant and fall to zero when Vi becomes negative.

Vo will spike when Vi is at the maximum/minimum point of the sinusoidal curve; zero everywhere else.

Vo will be the same sinusoidal curve but at a lesser amplitude.

Vo will peak at a level less than Vi maximum voltage and remain constant throughout.

Принять ответ

Code: THJL When selecting switchgear to work with High Voltage it is important to use an appropriate arc quenching medium. What is meant by arc quenching medium?

The gas, liquid or vapour which will minimise creation of an electric arc as contacts open.

Equipment which communicates information about the arcing.

The way in which the contacts separate as the switchgear operates.

A material which assists a welding process.

Принять ответ

Code: PEBH A 250 V contactor has been fitted to a 220 V supply. Which of the following symptoms might be observed?

Contactor overheating.

Contactor wont operate.

Contactor chattering (vibrating).

Contactor constantly on.

Принять ответ

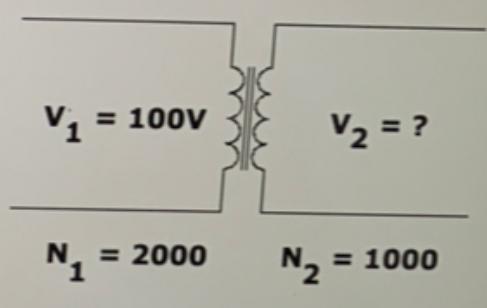

Code: SRBP The circuit shows a transformer with two windings, N (1) = 2 000 and N (2) = 1 000 turns, on a common magnetic circuit. Assume that there are no energy losses in the transformer itself. Calculate the output voltage V (2) when the input voltage is V (1) = 100 Volt.

V (2) = 400 V.

V (2) = 200 V.

V (2) = 10 V.

V (2) = 50 V.

Принять ответ

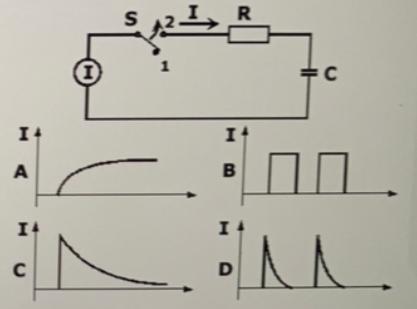

This circuit consists of a current source I, a change-over switch S, a resistor R and a capacitor C. The current/time figures 1 to 4 show possible changes in the current I when the switch S is suddenly shifted from position 1 to 2 at time t = 0. Which diagram is correct?

Figure A.

Figure B.

Figure C.

Figure D.

Принять ответ

Code: AOML Which cell voltage is required to trickle charge a lead acid battery?

1,2 V.

2,15 V.

2,5 V.

2,0 V.

Принять ответ

Code: VATG When the cable length exceeds approx. 10 meters we normally have to in case of a Pt 100, in some way compensate for the cable resistance. Do we also have to do this if we choose to use a T802 temperature sensor?

No.

Yes.

Depends on temperature to be measured.

Not applicable.

Принять ответ

Code: TEOA High Voltage systems rely on the installed protective equipment being able to interrupt any fault in the system. Throughout the system, the fault level has been calculated, and under no circumstances must the system be modified to exceed this fault level. What is meant by fault level?

The amount of apparent power, that would be drawn from the generating plant, when a short circuit occurs at the bus bars.

The amount of apparent power that could flow into any fault at any.

The current level flowing into a symmetrical short circuit fault between all three phases.

The current level flowing into a dead short to earth at any point on the ship, directly from the High Voltage system.

Принять ответ

Code: BGNJ The continuity resistance of a 100 m long × 25 sq. mm cable (rated at 100 A) is to be checked. Which of the following results would you anticipate?

Between 0,1 Micro Ohm and 1,0 Micro Ohm.

Between 0,1 and 1,0 M Ohm.

Between 0,1 and 1,0 Ohm.

Greater than 1 M Ohms.

Принять ответ

Code: XQSO When starting three phase induction motors which of the following starting methods will immediately apply rated voltage to the machine?

Direct on Line.

Star Delta.

Auto – transformer.

Soft starter.

Принять ответ

Code: HQPE Continuity testing of a delta connected three phase induction motor yields the following results; U-V = 3 Ohms, V-W = 3 Ohms, W-U = 6 Ohms. Which of the following is the likely condition?

Open circuit winding between W and U.

Short circuit winding between W and U.

Partial fault between W and U.

Short circuit between V and Earth.

Принять ответ

Code: RGBR What is the advantage of a transmitter with a narrow measurement range?

Easy installation.

Better linearity and increased accuracy.

Do not need any calibration.

Lower purchase cost.

Принять ответ

Code: UGPX How can a lead-acid type battery be checked to confirm if it is fully charged or not?

Measure the level of the electrolyte.

Measure the battery voltage.

Measure the temperature of the electrolyte.

Measure the relative density (specific gravity) of the electrolyte.

Принять ответ

When polarity of the incoming power line is reversed, what happens to the DC motor?

Motor rotates in the reverse direction.

Motor explodes.

Motor still rotates in the same direction.

Motor stalls.

Принять ответ

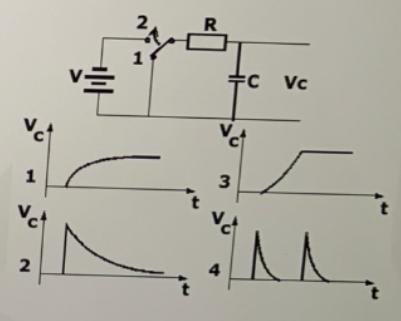

Code: BXUA This circuit consists of a voltage source V, a change-over switch S, a resistor R and a capacitor C. The voltage/time figures 1 to 4 show changes in the voltage V(C) when the switch S is suddenly shifted from position 1 to 2 at time t = 0. Only one of the diagrams is correct. Which?

Figure 1.

Figure 2.

Figure 3.

Figure 4.

Принять ответ

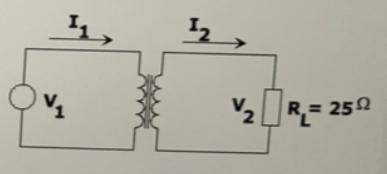

Code: NCNE This figure shows a transformer, with two windings, N(1) = 2 000 and N(2) = 1 000 turns, on a common magnetic circuit. Assume that there is no energy loss in the transformer itself. Calculate the current l(2) when the current l(1) = 2 A.

l(2) = 2 A.

l(2) = 4 A.

l(2) = 1 A.

l(2) = 8 A.

Принять ответ

Code: EKVD What should be the healthy continuity resistance of a 220 V, 2,2 kW, 10 A heating element, when checked near to it’s rated operating temperature?

22 Ohms.

10 Ohms.

0,1 Ohms.

220 Ohms.

Принять ответ

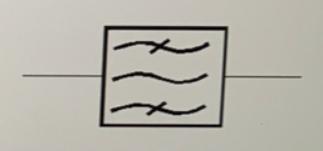

Code: UDFB Which electronic component or system is this graphical symbol illustrating?

Transformer with ferromagnetic core.

Electric heater.

3-phase sine-wave generator.

Bandpass filter.

Принять ответ

Code: GNXL Can a ZENER BARRIER be installed in a hazardous area?

No, as only the output from the barrier is intrinsically safe this is not allowed.

Yes, that’s what the zener barrier is made for.

Only if properly marked for such installation.

Only in equipment operating on very low voltage.

Принять ответ

Code: DBRX When there is a need to interrupt current flow in a high voltage system it may be very difficult to quench the electrical arc which is generated at the circuit breaker contacts. Which of the following arcing media is commonly found in high voltage marine switchgear?

Water.

Vacuum.

Air.

Oil.

Принять ответ

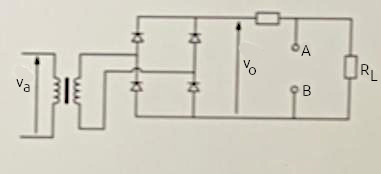

Code: XIWJ The circuit shows a full-wave bridge rectifier. Which electronic component should be connected between “a” and “b” in order to obtain reduced ripple voltage to the load RL.

Inductive reactor.

Resistance.

Zener diode.

Capacitor.

Завершить тест

* В некоторых вопросах теста может быть несколько правильных ответов.
