Current test contains Seagull CES questions on the subject «Engine, Support level». Those questions can be used for competence verification specialist capable of preventing accidental situations related with transporting safety, or also for self-examination.
«Engine, Support level» subject includes theoretical and practical information about advanced training for work on any type of vessel. Knowledge of this information directly shows employee’s competence who holds a relevant post on a vessel. On board a vessel, the technical maintenance of the engine is typically managed by a team of dedicated marine engineers or engine crew members. These professionals are responsible for ensuring the engine’s proper functioning, conducting routine inspections, and performing necessary repairs or adjustments. Maintaining an optimal engine support level is crucial for safe and efficient maritime operations, as it helps prevent breakdowns at sea and ensures compliance with industry regulations, ultimately safeguarding both the vessel and its crew.
On this site Crew Evaluation System Test on the subject «Engine, Support level» contains 230 questions you need to answer with no possibility to go back to previous question. Therefore, we recommend carefully reading each question and making decision with no hurry. In case you have some difficulty answering, you have also possibility to request a hint.
Choose the regime, in which you want to pass CES test:
Training
Exam
Wild Mode
* Some questions may have more than 1 correct answer.
Code: IYNT An immersion suit will not sustain burning or continue melting after being totally enveloped in a fire for a period of:
2 sec.
1 min.
20 sec.
10 sec.
Code: KIQX You have abandoned ship in a liferaft. In most cases, which of the following actions should you generally take?
Organise a lookout system. Join up with other survival craft if possible. Stream the sea anchor.
Join up with any other survival craft and stream the sea anchor.
Start padding in the direction of the nearest land.
Organise a lookout system.
Code: EGBB Where do you find instructions for tasks and duties in case of an emergency?
In the muster list.
On posters at the lifeboat station.
In instruction notices posted in the crew’s cabins.
Code: EEAE, IYEL What is the minimum distance between the helmet and the head of the wearer supposed to be?
3 cm.
No minimum distance.
1 cm.
7,5 cm.
Code: KECH, MSJT What kind of permits have to be obtained before starting cold work in tanks?
Cold work permit + Permit for entry.
Cold work permit.
Hot + Cold work permit.
Hot work permit.
Code: YPYM Which of these are indications that a parcel is suspicious?
The parcel is addressed to no one in particular, arrives unexpectedly and seems heavy for its size.
The parcel smells like chocolate.
The parcel is wrapped in clean, brown paper and is addressed to a crewmember from his wife.
The parcel came from Joe in the safety department and arrived quicker than expected.
Code: IHKR Which of these are indicators that an individual may be a drug smuggler?
The individual wears bulky or out of season clothing.
The individual is disinterested in the ship’s cargo.
The individual spends his or her free time hanging out with others.
The individual makes small local purchases.
Code: WESL Steam escaping from the area of the bottom water header handhole doors of a high pressure boiler generating superheated steam is observed by the engine rating on watch. What action should be taken?
Immediately inform the Officer of the Watch.
Use the hand to have a feel around the area to try and locate the exact position of the leak.
Check the area where it is thought the leak may be using a cloth on the end of a broom handle.
Pass the information that there is a leak to the relief at the end of the watch.
Code: UTNK When cleaning boiler burner nozzles that have just been in service the watch rating notices that the nozzle holes are partially blocked. Which of the methods given in the options is the preferred method to use in order to avoid damaging the nozzle holes?
Use cleaning wires starting with a small gauge and gradually work up to the full size of the nozzle hole.
Use a standard drill bit in a hand drill to clear the blockage.
Knock the nozzle repeatedly on the work bench to try and dislodge the blockage.
Poke the holes clear with a welding rod which has been ground down to size.
Code: WAHJ While assisting the watchkeeper with routine cleaning of the fuel oil separator the watch rating is requested to clean the plate stack. Which one is the preferred method for this task?
Soak the plates in a suitable solvent until all of the dirt has loosened off and wipe clean with rags.
With the plate stack in position fill the purifier bowl with clean diesel oil and quickly switch it on and off to wash the plates.
Soak the dirty plates in a solvent for an hour and then stand them on the engine room deck to drain off.
Scrape the plates as clean as possible with a packing knife and then wash them with a high pressure water hose.
Code: IDPI As part of the routine duties a rating on boiler watch is requested to assist with the daily chemical treatment for the boiler and feed water systems. Where will the rating find the information relating to the hazards associated with the chemicals involved in this task?
The material safety data sheets supplied with the chemicals.
The Chief Engineer’s standing orders.
The Code of Safe Working Practices for Merchant Seaman.
The engine room log book.
Code: ASOQ When checking the diesel engine jacket water header tanks as part of the routine watch checks the engine room watch rating finds the level is well below normal. After topping up the tank and checking around the engine a leak is found. What action should be taken?
Try and quickly stop the leak and then inform the engineer on watch of what has happened.
Put a bucket under the leak and refill the header tank with the water that collects in the bucket to save water.
Leave the filling valve open a little bit to make up for the leakage.
Check the tank and top it up more frequently.
Code: YHYH What is the most suitable type of packing for a shaft gland of a pump used for seawater duties?
Greasy cotton packing.
Mica impregnated cotton packing.
PTFE rope packing.
Lead covered cotton packing.
Code: GEHU An engine room rating is assisting in the maintenance of some of the valves on the low pressure steam range. Which packing material, from the options given, would be the best choice for repacking the gland of a low pressure steam valve?
Graphite fibre packing.
Greasy cotton packing.
PTFE rope packing.
Lead covered cotton packing.
Code: YHRT During maintenance work at sea an engine room rating is moving a heavy component to the workshop using a chain block attached to an overhead trolley on a rail. Part way through the operation the rating is asked by the engineer to go immediately to the store for some equipment. What should the rating do?
Continue with the moving operation until the component is properly secured in the workshop before going to the store for the equipment.
Immediately land the component on the deck and secure it to a hand rail stanchion and go and get the equipment from the store.
Leave the component suspended from the chain block and go and collect the equipment from the store.
Code: DNRO A pump cover is sealed using a paper gasket which is damaged during overhaul. There are no spare gaskets available. How should the casing be sealed when reassembling the pump?
Make a new gasket from old chart paper or other similar material of the same thickness as the original gasket.
Put a thick layer of jointing compound on the face of the cover and tighten the cover until the compound squeezes out.
Run a bead of silicon around the outside of the joint after fitting the cover.
Re-use the old gasket.
Code: QHEM A small electric motor needs to be taken to the bottom plates for fitting to a domestic water pump. It is only just too heavy to be manually carried so is to be lowered using the engine room crane. Which of the options given would be a suitable strop to use for the operation?
Any certified strop which has a safe working load greater than the weight of the motor.
Any strop which looks big enough to carry the load.
A wire strop which is rated for twice the required load but is out of certification.
Any piece of rope will do as the motor is only just too heavy to carry.
Code: BKAW The bottom end bolts for a high speed diesel engine are checked to see if they are fit for service by measuring the free length against a standard length. During overhaul the check reveals that one out of a pair of bolts has exceeded the recommended elongation limit. From the options given select the most appropriate action to be taken.
Replace the pair of bolts with new spares.
Refit the bolts as long as one of them is within the limit it should be ok.
Replace all of the bottom end bolts in the engine with new spares.
Replace the single bolt that has exceeded the limit with a new spare.
Code: MLJI The holding down arrangement for a large 2-stroke diesel engine consists of steel chocks and hydraulically tightened holding down bolts. When carrying out routine maintenance of the arrangement which method, from those given in the options, should be adopted to check that it is in good order.
Check the hydraulic release pressure for the holding down bolts.
Tap the steel chocks with a hammer to see if they move.
Tap the holding down bolts with a hammer to see if they “ring”.
Measure the length of the holding down bolts to make sure they have the correct extension for the recommended tension.
Code: MXAH Following repair and refitting of the seawater pipe for the fresh water generator feed line the rating assisting with the work notices that one of the flange joints is leaking. What action should be taken by the rating?
Check the bolts are correctly tightened before informing the engineer so that the flange faces can be cleaned and re-jointed if necessary.
Shut off the water and apply silicon or other sealing compound to the outer edge of the flange joint.
Use a spanner with an extension pipe to try and stop the leak by tightening the flange bolts as much as possible.
Use a hammer and flogging spanner to try and stop the leak by tightening the flange bolts as much as possible.
Code: GEHU An engine room rating is assisting in the maintenance of some of the valves on the low pressure steam range. Which packing material, from the options given, would be the best choice for repacking the gland of a low pressure steam valve?
Graphite fibre packing.
Greasy cotton packing.
PTFE rope packing.
Lead covered cotton packing.
Code: PKMR During maintenance work on a fuel tank the engine room ratings are removing scale in preparation for re-coating. One of the ratings suddenly notices the smell of fumes even though the atmosphere had been satisfactorily tested before the work started. What action should the ratings take?
Leave the tank immediately and have the atmosphere retested.
Stop work until the smell disappears and then carry on removing the scale.
Ask for another fan to be switched on to increase the ventilation in the tank.
Put on breathing apparatus and carry on with the task.
Code: QRJT An engine room rating is assisting the duty engineer during a period of UMS operation. After completing the tasks they have been busy with the engineer and rating leave the engine room which is returned to UMS mode. The rating realises that an oil tank filling valve has been left open. What action should be taken?
Inform the duty engineer immediately so that the engine room can be re-entered and the valve can be shut.
Inform another crewmember that he is going back into the engine room to close the valve.
Just leave the valve open as it is unsafe to enter the engine room alone. The high alarm will sound to notify the engineer when the tank is full.
Re-enter the engine room straight away and shut the valve.
Code: HHFQ A spare cylinder head for the generator needs to be lifted from its storage cradle to the generator flat. Because of its location the engine room crane cannot be positioned directly above it. What method should be used to bring the cylinder head into position?
Rig chain blocks to lift the cylinder head from its cradle and then transfer it gradually over to the crane hook by working the chain blocks.
Use a block and tackle to drag the head across to a position beneath the crane.
Use crow bars to lever the cylinder cover across the deck until it is in position below the crane.
Code: JOTI During overhaul of some plate type compressor valves the engine room rating is asked to clean the valve plates and seat. Some of the valve plates are heavily marked. What action should be taken?
Discard the defective valve plates and replace them with new spares.
Skim the valve plates in the lathe to remove all of the marks.
Dress the valve plates up using a portable grinder.
Code: CFYN Most of the engine makers recommend to change the cylinder head gaskets each time a piston overhaul is carried out. Why?
To obtain a proper sealing and correct distance between piston and cover in TDC position.
To avoid heat transfer to the cylinder head.
To be granted a proper sealing with a new gasket.
To increase the consumption of parts so they can make more money.
Code: DNRO A pump cover is sealed using a paper gasket which is damaged during overhaul. There are no spare gaskets available. How should the casing be sealed when reassembling the pump?
Make a new gasket from old chart paper or other similar material of the same thickness as the original gasket.
Run a bead of silicon around the outside of the joint after fitting the cover.
Re-use the old gasket.
Code: FCGA A new gasket has been fitted to the manhole cover of a ballast tank. Which of the options given would be a suitable test that the new gasket is correctly fitted?
Carry out a hose test on the manhole cover.
Carry out an air pressure test on the ballast tank.
Fill the tank with water up to capacity.
Fill the tank with water until it overflows through the air vent.
Code: WGNY A plate type heat exchanger in a central cooling system has seawater leaking around the edges of some of the titanium plates. After inspection and reassembly following the manufacturer’s instructions the problem still exists. What action, from the options given, should be taken to rectify the problem?
Fit new gaskets to the each of the plates.
Keep tightening the plate stack until the leakage stops.
Reduce the pressure of the sea water.
Scrap the plates and replace with a new plate stack.
Code: CGRH Which of the options given is the main reason for using a ring spanner to tighten the brass nuts on the cover studs of a pump casing?
It will minimise the risk of slipping off the nut or damaging the nuts.
It can be adjusted to the exact size of the nut.
It will allow the nuts to be tightened correctly.
The nuts can be tightened more with this type of spanner.
Code: WVMK Why should engine and boiler rooms be kept clean and any oil spillage cleaned up immediately?
To reduce risk of fire and the risk of slipping.
To avoid being fined by the port state control.
To reduce the premium to be paid to the insurance company.
To prevent oil spillage from damaging deck paint coatings.
Code: GNIB A threaded hole is to be formed in a steel plate using a tap and wrench. When drilling the hole which of the options best describes the required drill size?
The drill should be a smaller size than the diameter of the tap.
The drill should be a bigger size than the diameter of the tap.
The drill should be the same size as the diameter of the tap.
The drill should be the same size at the diameter of the bolt that is to be fitted into the hole.
Code: UOHQ Which of the options given is most likely to result in overheating of a ball bearing fitted to a pump shaft?
Completely filling the bearing with grease.
Fitting a sealed bearing that cannot be greased.
Partly filling the bearing with grease.
Running the pump at full capacity.
Code: PNOP What do you understand by: “Move the pilot ladder”?
Move the pilot ladder means to shift the pilot ladder to a new position.
Move the pilot ladder means to lower the pilot ladder.
Move the pilot ladder means to shift the pilot ladder to the opposite side of the vessel.
Move the pilot ladder means to rig another pilot ladder.
Code: KFDP What do you understand by: “Let go the port anchor”?
Open the port windlass brake.
Put the port windlass brake in gear.
Slacken the port anchor cable.
Put the port windlass brake in gear and lower the anchor.
Code: IMXO In the human body, breathing is controlled by:
The respiratory centre in the brain.
The bronchia.
The lungs.
Movement of heart.
Code: EXJL If a casualty has no pulse, the first aider must immediately:
Start heart compression and artificial respiration.
Raise an alarm for help.
Do nothing as the patient is already dead.
Inform the next of kin.
Code: FOMM An airway should be used when:
The patient is breathing on his own but is doing so with great difficulty.
The patient has stopped breathing.
Patient has injury in the mouth.
The patient is unconscious.
Code: YSQG Port State Control Officers are authorised to:
Inspect and detain ship that are not meeting the requirements until they are able to demonstrate compliance with the regulations.
Sign oil record book entries.
Regularly inspect ships known to meet the requirement.
Detain ships that are not meeting the requirements for a minimum of 30 days.
Code: RLFV To prevent inadvertent leaks, bunker manifold not in use should:
Have blank flanges fitted with gaskets and tightened with all bolts in place.
Have blank flanges fitted and tightened with some bolts in place.
Have blank flanges fitted with gaskets and tightened with some bolts in place.
Have blank flanges fitted and tightened with all bolts in place.
Code: MKRE What is the main difference between a stuffing box gland and a mechanical seal on a centrifugal pump?
If packing fails the pump can be kept running by tightening the glands, but if a mechanical seal fails it must be renewed to stop the leakage.
Packed stuffing box glands must be cooled by liquid, but mechanical seals do not require any cooling.
Packed stuffing box glands are subject to wear but mechanical seals are not.
Code: HPGW What type of heat exchanger is shown in the illustration?
Plate.
Shell and tube.
Bundle and stack.
Code: ARJL Why use a central cooling system?
It requires less maintenance.
It is not a complicated system.
It is more easy to operate.
It is cheap to install.
Code: ELOQ What is the most likely cause of an increase in the chloride content of the fresh water in a central cooling system?
Leakage of sea water from the central coolers.
Leakage from an oil cooler into the fresh water system.
Insufficient cooling water treatment.
Exhaust gas leakage into the freshwater at the turbochargers.
Code: JIOE How is the temperature of the high temperature circuit of a central cooling system normally controlled?
By mixing with water from the low temperature circuit.
By controlling the flow through the fresh water evaporator heating circuit.
By controlling bypass of flow for the central coolers.
Code: MHMP Why is it preferable to have the sea water pressure lower than the fresh water pressure in a sea water cooled heat exchanger for a central cooling system?
Prevent seawater contamination of the central cooling system in the event of seal failure.
To reduce any scale deposits on seawater side.
To minimise the load on the seawater pump motor.
Code: OCEG What is a system employing a single common freshwater cooler (cooled by means of seawater) called?
Central cooling system.
High temperature freshwater system.
Common cooling system.
Low temperature freshwater system.
Code: GKPM, KJXP On a fire patrol at night you see smoke coming from a closed cabin door. What action should you take first?
Activate the nearest fire alarm button and advise bridge of the location of the fire.
Take a look inside the cabin to see what the situation is.
Get the nearest fire extinguisher and then open the door to see what the situation is.

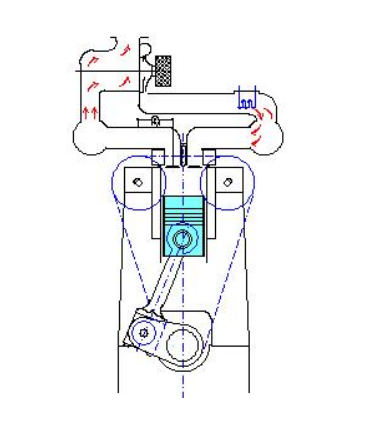

Code: AQEQ A piston ring set for a trunk piston engine often includes a slotted ring tensioned by an internal spring. What is the purpose of this type of piston ring?
It is an oil scraper ring.
It is the firing ring.
It is the lowest compression ring.
Code: BFHW A boiler plant has been shut down for some time. Prior to starting the boiler, which of the following subjects is the “most important” control check?
That the combustion chamber of the boiler is checked being empty for oil and that the pre-ventilation function prior to ignition is functioning.
That the burner unit to be thoroughly checked prior to start.
That fuel oil supply is running on diesel oil.
Code: DCQD Some engine makers use a copper casket for proper sealing between fuel injector valve, cylinder head and combustion chamber. Why is it so important to use the correct one?
To keep the valve in correct position and to maintain proper sealing.
For proper sealing function.
To avoid combustion gas to overheat the valve.
Code: DJFM You are going to start firing a boiler. Which of the below mentioned alternatives do you consider as most important?
A thorough ventilation of the combustion chamber before the ignition takes place.
Bottom-blowing the boiler to be absolutely convinced that water is present in the boiler.
Opening the main steam pressure outlet valve.

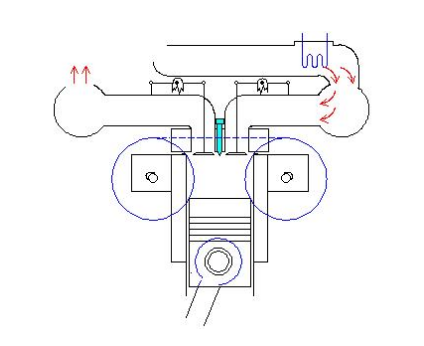

Code: JHYU To achieve best possible combustion in our engine, we want to have:
An atomization of the fuel injected into the combustion chamber.
A beam of solid fuel, hitting a warm piston up.
Let some of the fuel go to the overflow pipe.
Code: KQBY Why are we blowing the engine before start (slow turning on air)?
To be sure that we do not have water collected in the cylinders.
To get fresh air into cylinders ensuring a safe start of the engine.
To be sure that no parts are loose, or that the engine is blocked from rotation.
Code: OVEK A piston ring set for a trunk piston engine often includes a slotted ring tensioned by an internal spring. What is the purpose of this type of piston ring?
It is an oil control ring.
It is the firing ring.
It is a ring to seal the crankcase from the combustion chamber.
Code: PKPS Why is it important to check the timing on the cylinder oil lubricants?
To get the oil into the cylinder when the piston is in the right position.
To avoid excess lubrication.
To get the right amount of oil into the cylinder.
Code: RPIE Why is it important that the combustion chamber of a boiler is properly ventilated prior to ignition?
To avoid an explosion in case any oil vapours are present from oil leakage into the furnace.
To ensure that there is sufficient air for proper combustion.
To remove any deposits from the furnace wall.
Code: YSUD For a 4-stroke diesel engine, the exhaust gas from the funnel is seen to be white/light grey in colour. Which of the options given is the most likely cause of this.
Water leaking into the combustion chamber.
Faulty fuel injection valve.
The engine is burning lubrication oil.
Code: HCAT During routine checking of an engine following start up it is discovered that the start air pipe to one of the cylinders is hotter than normal. What is the likely cause of this problem?
The air start valve for the cylinder is leaking or stuck open.
The air start line flame trap for the cylinder is burning inside.
The main air start automatic valve has not closed properly.
Code: DYBF What is the purpose of a scum valve often fitted to a steam boiler?
To allow removal of any oil or scum which collects on the surface of the water in the boiler steam drum.
To allow removal impurities from the boiler feed-water.
To allow removal of oil from the surface of the feed water tank.
To allow removal of sludge and mud which may collect in the bottom of the boiler water drum.
Code: KNLD Why is it important that all the system valves are closed after completing bilge or ballast pumping operations?
To avoid accidental intake of water into the engine room in case of valve or pipeline failure.
To keep the pump housing full or fluid.
To make sure the valves do not seize in the open position.
It isn’t important how the valves are left after pumping operations are completed.
Code: YMKS The valve that prevents water from backing out of the boiler into the feed-water line is called:
Feed-check valve.
Bottom-blow valve.
Feed-stop valve.
Skin valve.
Code: XXBP What action should be taken if it is noticed that there is a quantity of oil on the engine room tank top?
Notify the duty engineer and try and find the cause of the leakage so that it can be stopped and the oil cleaned up.
Start the fire pump and wash the oil into the bilges.
Apply foam to the tank top to minimise any risk of fire.
Open the overboard valve and start the bilge pump.
Code: BWVB What should be the first indication that the engine room watchkeepers get that there is oil or water leakage in the engine room?
They should see it on the tank top or in the bilge well during regular inspections.
They should hear the bilge pump start up automatically.
A low level alarm should sound for one of the oil or water tanks.
Code: FCNJ When having a fire alarm during normal working hours, what immediate actions should be taken?
Act according to instructions given in the fire plan.
Start searching for the fire to determine if it is in the engine room.
Everybody gather in the safety centre.
Start the fire pump, the sooner the better.
Code: NSAY Which of the following pump types could be damaged if the discharge valve is closed before the motor is stopped?
Gear pump.
Turbine pump.
Propeller pump.
Screw pump.

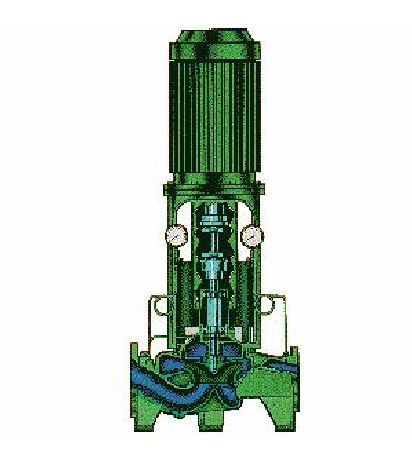

Code: YBGW Which of the following pump types will normally require a separate means of priming?
Centrifugal pump.
Reciprocating.
Gear pump.
Screw pump.
Code: ANML, PTFK Zinc anodes are used on the seawater side of heat exchangers to:
Prevent against corrosion.
Prevent scaling.
Reduce salinity.
Prevent accumulation of marine growth.
Code: HREY, VISK What should the Fitter be asked to do?
The Fitter should be asked to check the level of hydraulic oil in the header tank.
The Fitter should be asked to stack empty oil drums on the forecastle.
The Fitter should be asked to dispose of empty oil drums into the sea.
Code: BLVT During replacement of the main bearing shells on a medium speed diesel engine it is necessary to remove both the top and bottom half shells. From the options given select the method that is most commonly employed to remove the bottom half shells from the bearing pockets on an engine with a traditional bedplate?
Fit a driver in the crankshaft oil hole which bears against the edge of the bottom half shell and turn the engine.
Jack up the crankshaft and use a suitable punch to loosen the bottom half shell in the pocket so it can be lifted out with a pair of grips.
Remove the crankshaft so that all the bottom half shells can be removed at the same time.
Code: EXKB Which part of the crankshaft of a modern large two stroke diesel engine is most likely to be the origin point for crack initiation during service and therefore needs the greatest attention during maintenance inspection?
The fillet radii.
The keyways.
The oil holes.
Code: GONJ Modern medium speed diesel engines normally have relatively short crankshafts with large diameter pins. How do these design features affect the reliability of crankshaft deflection readings?
They increase the risk of inaccurate readings due to the “stiff” shaft having very small natural sag which may therefore result in “floating journals” in the static condition.
The design of the crankshaft has very little effect on the readings when compared to the inaccuracies that arise due to human error.
Very short, stiff crankshafts do not deflect even when the engine running so the readings are unaffected.
Code: JUES We are taking a crankshaft deflection control of the engine. The reason is:
To control the weardown of the main bearings.
To control the timing of the ignition.
To control the flexibility of the shaft.
Code: DYIY Which of the options given is one of the main responsibilities of a watch-keeping engineer?
To inform the Chief Engineer of any situations that cannot be controlled during the watch.
To by-pass, adjust and isolate all machinery under his supervision.
To immediately inform the Master of all events that occur during the watch.
Code: LAOL Select from the options given the statements that best describes the main duties of an engine room rating who is part of an engine room watch?
Engine room ratings forming part of an engine room watch should assist in efficient and safe watch-keeping routines.
Engine room ratings forming part of an engine room watch should make the tea for the engineers.
Engine room ratings forming part of an engine room watch should verify that the operational parameters of all items of machinery conform to manufacturers instructions.
Code: MIWH, RYJV, WYWG What is the correct lifting technique?
Legs bent, back straight, using leg muscles to lift.
Legs straight, back bent, using back muscles to lift.
Legs straight, back bent and twisted to the right or to the left while lifting.
Code: AECJ A drip tray containing oil is on fire. The only fire fighting equipment available is water hose with spray jet/spray nozzle. How, if at all, should you attempt to put out this fire using water?
The water can be applied in a fine spray starting from the front in a sweeping motion.
Water should be applied in a jet to the back of the fire.
Water should be applied to the oil in a single jet only.
Code: SKFX Which of the following are frequent causes of fires in accommodation?
Smoking in bed; covering of electric fires with blankets; overloading electric plugs.
Covering of electric fires with blankets.
Smoking in bed.
Code: BCET The boiler gauge glasses should be blown down:
At the beginning of every watch.
Once a day.
Every hour.
Code: LEPT One of the two water level gauge glasses on the high pressure boiler steam drum has started leaking quite heavily. What action, from the options given, should the boiler watch rating take?
Inform the Officer of the watch immediately so that arrangements can be made to replace the leaking glass.
Try and stop the leak by tightening up the clamping bolts as much as possible.
Place a bucket underneath the leak to catch the water to prevent the area becoming slippery.
Code: UPXL What should be the first action to be taken in the event of the water level disappearing out of the boiler water level gauge glass?
Secure all of the burners.
Close the feed-water stop valve.
Call the Chief Engineer.
Code: VHNO Which of the given options best completes the following statement? You should never attempt to light a boiler until:
The furnace purge sequence is completed.
The air register is fully open.
The gauge glass shows the water at normal working level.
Code: CDBN According to their physical state, extinguishing agents may be classified in to:
Solid, liquid and gases.
Proteinic and synthetic.
Synthetic, proteinic, gases and liquid.
Code: UKQF How do the extinguishing agents act?
By cooling, smothering, unfeeding (combustible suppression), inhibition.
By ignifugation.
By inhibition.
Code: NIDT When a fire breaks out in the accommodation, cargo holds or on deck, who is in charge of the fire fighting operations?
The person who is designated in the muster list.
The first officer arriving at the scene.
The first person arriving at the scene.
Code: LDGV In the fire fighting of fires of a C kind with dry chemical powder extinguishers, the application is performed:
In a continuous way so that the powder spray is in the same direction as the one of the flame.
The chemical powder doesn’t extinguish C fires.
Across the flame, sweeping it.
What is the main difference between a stuffing box gland and a mechanical seal on a centrifugal pump?
If packing fails the pump can be kept running by tightening the glands, but if a mechanical seal fails it must be renewed to stop the leakage.
A stuffing box gland is more efficient in sealing than a mechanical seal.
A mechanical seal is used for pumps with higher flow rates only, while a stuffing box is used for all pumps.
The stuffing box gland requires no maintenance, whereas mechanical seals need regular adjustment.
What is the main purpose of a heat exchanger in a cooling water system?
To transfer heat from one fluid to another.
To filter out impurities in the cooling water.
To add chemicals to the cooling water for improved performance.
To circulate the cooling water through the system without any heat exchange.
What type of heat exchanger is shown in the illustration?
Shell and tube.
Plate.
Air-cooled.
Spiral.
What is the correct name of the part highlighted in the illustration?
Fuel injector.
Carburetor.
Spark plug.
Air filter.
What is the normal maximum oil content permitted for machinery space bilge overboard discharge via OWS equipment?
5 ppm.
15 ppm.
50 ppm.
100 ppm.
Which cleaning agents are suitable for use in machinery space when considering the effect on the function of the oily water separator?
All cleaning agents are suitable regardless of their emulsifying properties.
Only strong chemical cleaning agents should be used.
Only non-emulsifying cleaning agents with self splitting emulsifiers are suitable.
Emulsifying agents should always be avoided to prevent clogging of the separator.
As a general rule, where would you expect to find a portable fire extinguisher in any space?
Near to the entrance to the space.
In the center of the space for easy access from all directions.
Near electrical panels or machinery.
At the highest point of the space to avoid obstruction.
After an engine following start-up it is discovered that the start air pipe to one of the cylinders is hotter than normal. What is the likely cause of this problem?
The air start valve for the cylinder is leaking or stuck open.
The fuel injector for the cylinder is malfunctioning.
There is a blockage in the air start pipe.
The cooling system for the cylinder is operating at a lower pressure than normal.
What is the main purpose of bottom-blowing a boiler?
To remove any accumulated sludge from the water drum.
To increase the steam pressure in the boiler.
To circulate water more evenly in the boiler.
To reduce the temperature of the boiler water.
When the boiler safety valves operate due to the boiler pressure being too high the excess steam is discharged to…
The feedwater system to reduce pressure.
The atmosphere via the atmospheric line.
The superheater to reduce temperature.
The exhaust system for cooling.
What is the normal indication that an oil filter is becoming blocked?
The pressure drop across the filter.
An increase in engine oil temperature.
A decrease in oil pressure at the pump outlet.
A change in the color of the oil.
What would be the likely cause if the shaft of a centrifugal pump shows excessive wear in way of the stuffing box?
Over tightening of the gland packing.
Insufficient lubrication of the shaft.
Incorrect alignment of the pump shaft.
High operating temperature of the pump.
What is a hydraulic hand pump usually used for?
A hydraulic hand pump is usually used to tighten G-nuts.
A hydraulic hand pump is used to operate large valves in the system.
A hydraulic hand pump is used to provide cooling to the engine.
A hydraulic hand pump is used to transfer fuel between tanks.
What is the correct name of the part highlighted in the illustration?
Intake valve.
Fuel injector.
Exhaust valve.
Camshaft.
What is the correct name of the part highlighted in the illustration?
Crankshaft.
Piston.
Timing belt.
Connecting rod.
Mention some important thoughts for what you have to do when you recognise that fire breaks out onboard:
Report to bridge or duty officer, actuate the fire alarm, call the persons around the fire and join the fire squad.
Evacuate the area immediately without informing anyone.
Try to put out the fire on your own without using any equipment.
Wait for instructions from the senior officer and do nothing until then.
Which activity will have the greatest fire-fighting effect in case of a fire?
Waiting for instructions from the senior officer before acting.
Extinguishing attempt is started immediately.
Ventilating the space before starting any action.
Evacuating the crew before attempting to fight the fire.
What is the meaning of this symbol?
Lifeboat.
Fire extinguisher.
Lifejacket storage.
Emergency exit.
What is the first thing that should be checked when taking over a boiler watch?
The boiler water level.
The fuel pump pressure.
The exhaust gas temperature.
The condition of the boiler casing.
What is the most likely cause of the boiler exhaust gas being white in colour leaving the funnel?
Fuel oil contamination.
Incomplete fuel combustion.
Too much combustion air.
Excessive soot deposits in the boiler.
What is the first action that should be taken by the rating on boiler watch in the event of a flame failure on the boiler?
Call the engineer on watch.
Immediately restart the burner.
Increase the fuel supply.
Open the air registers fully.
In the event of the water level disappearing out of the boiler water level gauge glass; what should be the first action to be taken?
Secure all of the burners.
Increase the feedwater supply immediately.
Open the steam vent to reduce pressure.
Blow down the boiler to remove sediments.
What kind of process is a fire?
A chemical process.
A thermal process.
All the mentioned alternatives.
An oxidation process.
Which of the following measures should be applied when hot work is to be undertaken in a harbour?
To have a hot-work permit.
To rely on natural ventilation.
To notify the ship’s cook.
To carry out the work without any precautions.
You are carrying out a search in a smoke filled compartment wearing a breathing apparatus. At what stage should you start to make your way out of the compartment?
Leave immediately after entering the compartment to avoid smoke inhalation.
Only start to return when your pressure gauge shows empty.
Regularly check your pressure gauge and note how much air you used to reach your work area. Start to return when you have this amount left plus a reasonable reserve.
Wait until you feel dizzy before making your way out.
Give the meaning of the following symbol:
Fire alarm panel.
Emergency exit sign.
Fire extinguisher location.
Smoke detector.
A lifejacket is so constructed that a person can correctly don it within a period of:
1 Min.
3 Min.
5 Min.
10 Sec.
Which of the following features is required for an anti-exposure suit?
Is fitted with a light and a whistle.
Is made of cotton fabric.
Has a built-in flotation device.
Is designed for warm weather use.
In which way shall a survivor be hauled out of the sea?
Horizontal.
Vertically.
Diagonally.
In a sitting position.
How much food per person is supplied on a liferaft marked SOLAS B PACK?
None.
1 meal per day.
3 meals per day.
2 snacks per day.
How many buoyant smoke signals are carried in each liferaft with SOLAS B pack?
1.
2.
3.
4.
When mustered to an abandon ship drill, what is the first thing you do when entering the muster station?
Put on a life jacket.
Check in with the safety officer.
Wait for further instructions.
Gather your personal belongings.
The lowest temperature at which a liquid will give off sufficient vapors to form a flammable mixture with air is known as the:
Boiling point.
Ignition point.
Flash point.
Fire point.
What method shall be used when hauling survivors out of the sea (state of survivors is critical)?
Using nets.
Using a rope.
Using a rescue buoy.
Using a helicopter.
The responsibility for safety and security rests with everybody on board the vessel. General house-keeping rules should be followed. Which of the listed rules is the most important?
Always wear safety gloves.
Report all incidents immediately.
Keep your working area clean and tidy.
Ensure all equipment is stored away.
Welding and burning are two operations which give the highest risk of a fire on board ship. Which of the following safety precautions may be regarded as the most important in order to minimise this particular risk?
The area where the welding is to take place and adjacent spaces to be cleaned and all unnecessary materials and objects to be removed.
Ensure all personnel wear fire-resistant clothing.
Have fire extinguishers readily available.
Conduct a fire drill before starting the operation.
Which Security Levels requires the highest security alert?
Security Level 1.
Security Level 2.
Security Level 3.
Security Level 4.
Which of these are indicators that an individual may be a drug smuggler?
The individual wears bulky or out of season clothing.
The individual is traveling alone.
The individual has a large amount of cash.
The individual frequently changes their travel plans.
Steam escaping from the area of the bottom water header handhole doors of a high pressure boiler generating superheated steam is observed by the engine rating on watch. What action should be taken?
Attempt to close the handhole doors yourself.
Ignore it if there are no other signs of trouble.
Immediately inform the Officer of the Watch.
Wait until the end of your watch to report it.
When cleaning boiler burner nozzles that have just been in service the watch rating notices that the nozzle holes are partially blocked. Which one is the preferred method to use in order to avoid damaging the nozzle holes?
Use cleaning wires starting with a small gauge and gradually work up to the full size of the nozzle hole.
Use a high-pressure water jet to clear the blockage.
Use a metal rod to forcefully clear the holes.
Soak the nozzles in a strong acid solution.
After cleaning some machinery components at sea, the engine watch rating is instructed to dispose the small amount of dirty diesel oil which is left. How should the dirty oil be disposed?
Dump it overboard in a designated area.
Put it straight into the dirty oil tank for incineration at the next opportunity.
Store it in a container and leave it on deck.
Mix it with water and discharge it into the sea.
An engine room rating is assisting the duty engineer during a period of UMS operation. After completing the tasks they leave the engine room which is returned to UMS mode. The rating realizes that an oil tank filling valve has been left open. What action should be taken?
Inform the duty engineer immediately so that the engine room can be re-entered and the valve can be shut.
Wait until the next watch change to report it.
Close the valve from the control panel without re-entering the engine room.
Ignore it, as it is not a critical issue.
The engine room rating has been assisting with ballast operations during a period of engine room watch duty. Ballast operations have stopped for a couple of hours while stores are being taken. What action should the rating take during this break in operations?
Leave the ballast pumps running to maintain pressure.
Keep the ballast valves open for quick access when operations resume.
Inform the duty engineer and wait for further instructions.
Stop all of the ballast pumps and close all of the ballast valves as soon as operations are stopped. Ballast lines should always be closed except when they are being used.
What is the most suitable type of packing for a shaft gland of a pump used for seawater duties?
Greasy cotton packing.
Graphite packing.
PTFE packing.
Rubber packing.
An engine room rating notices that the guard on a running pump is hanging loose due to a missing bolt on the support bracket and it is catching the shaft coupling. What is the best action to take as a repair method?
Attempt to tighten the guard while the pump is still running.
Remove the guard completely and continue operating the pump.
Use tape to secure the guard temporarily until the next maintenance.
Inform the watchkeeper so that the pump can be stopped and a new bolt can be fitted to permanently fix the guard in place.
A small electric motor needs to be taken to the bottom plates for fitting to a domestic water pump. It is only just too heavy to be manually carried so is to be lowered using the engine room crane. Which of the options given would be a suitable strop to use for the operation?
Any certified strop which has a safe working load greater than the weight of the motor.
A piece of rope that is not frayed.
A strop that is rated for lifting personnel.
Any old strop that looks strong enough.
A spare cylinder head for the generator needs to be lifted from its storage cradle to the generator flat. Because of its location the engine room crane cannot be positioned directly above it. What method should be used to bring the cylinder head into position?
Use a forklift to move the cylinder head directly to the generator flat.
Attempt to lift the cylinder head manually with assistance.
Roll the cylinder head on a dolly to the crane’s position.
Rig chain blocks to lift the cylinder head from its cradle and then transfer it gradually over to the crane hook by working the chain blocks.
During overhaul of some plate type compressor valves the engine room rating is asked to clean the valve plates and seat. Some of the valve plates are heavily marked. What action should be taken?
Discard the defective valve plates and replace them with new spares.
Attempt to polish the valve plates to remove the marks.
Reuse the valve plates as long as they are not leaking.
Clean the plates and continue using them without replacement.
The threads on the drain plug for the bronze end cover of a sea water cooled heat exchanger have been badly damaged during maintenance. There is no spare brass plug available. What is the best solution for repairing the heat exchanger?
Use a temporary plug made of rubber.
Make a new brass plug on the lathe to fit the drain hole.
Apply thread sealant to the damaged plug and reuse it.
Leave the drain hole open until a spare plug can be obtained.
A seawater pipe is holed due to corrosion causing frequent bilge alarms. Which of the given temporary repair methods would be the preferred option to remedy the problem until the pipe can be replaced?
Cover all of the affected area with fibre glass tape and resin/fibre glass mixture.
Wrap the pipe with duct tape.
Use a rubber patch secured with hose clamps.
Seal the hole with epoxy putty.
Which type of pump is shown in the illustration?
A centrifugal pump.
A diaphragm pump.
A gear pump.
A screw pump.
A threaded hole is to be formed in a steel plate using a tap and wrench. When drilling the hole which of the options best describes the required drill size?
The drill should be a smaller size than the diameter of the tap.
The drill should be the same size as the diameter of the tap.
The drill should be larger than the diameter of the tap.
The drill size is not important for tapping.
An electric motor is to be aligned to a pump by inserting shims under the motor feet. Which tool would be used to check that the alignment is correct by measurement of the gap between the coupling faces?
A set of feeler gauges.
A torque wrench.
A laser alignment tool.
A caliper.
Which tool in the options given is the best one for cutting a new external thread on the end of a steel pipe?
A tap.
A hacksaw.
A pipe cutter.
Split dies.
What does the word «pirates» mean?
Pirates are persons who attempt to board and take over a ship at sea.
Pirates are individuals who work on fishing boats.
Pirates are people who sell goods at a market.
Pirates are sailors who navigate ships safely.
What do you call the wide rung on a pilot ladder that prevents the ladder from twisting?
The wide rung on a pilot ladder that prevents it from twisting is called a «Spreader».
The wide rung is called a «Stabilizer».
The wide rung is referred to as a «Support».
The wide rung is known as a «Brace».
What do you understand by the order: «Move the pilot ladder to the other side»?
It means to raise the pilot ladder higher on the same side.
It means to remove the pilot ladder completely.
It means to adjust the angle of the pilot ladder.
Move the pilot ladder to the other side, means: to shift the pilot ladder to the opposite side of the ship.
How would you alert others onboard if you saw a person falling overboard?
If I saw a person falling overboard I would shout repeatedly, «Man overboard».
I would ring the ship’s bell.
I would use a whistle to signal.
I would wait for someone else to notice.
An unconscious casualty who is breathing, should be placed:
In the recovery position.
On their back with their head elevated.
In a sitting position.
Flat on their stomach.
You must not attempt to move a casualty carelessly, if you suspect patient with:
Fractured spine.
Sprained ankle.
Minor cuts and bruises.
Headache.
To prevent inadvertent leaks, bunker manifold not in use should:
Be left open to allow for ventilation.
Have blank flanges fitted with gaskets and tightened with all bolts in place.
Have the valves closed but no flanges fitted.
Be covered with a tarp to prevent dust accumulation.
Which of these emission control requirements is correct?
Low sulphur fuels reduce emissions of volatile organic compounds.
High sulphur fuels are better for reducing emissions.
Emission controls are only necessary for diesel engines.
All fuels produce the same level of emissions regardless of sulphur content.
Is it safe to carry a bag of tools in your hand, up a vertical ladder? Select the best option.
No it is not – two hands should always be used to climb the ladder.
Yes, as long as the bag is not too heavy.
It is safe if you are careful.
Yes, you can use your shoulder to balance the bag.
What is the main reason for routine testing of the cooling water in a diesel engine cooling system?
To confirm that the water level remains consistent during operation.
To ensure that the correct levels of chemical treatment are maintained at all times.
To verify that the cooling water temperature stays within acceptable limits.
To detect leaks in the cooling system that could reduce performance.
What action should be taken if the heat transfer capacity of a heat exchanger operating as a lubricating oil cooler is reducing?
The heat transfer surfaces should be cleaned.
The lubricating oil flow rate should be increased.
Additional coolant should be added to the system.
The operating pressure of the heat exchanger should be reduced.
Choose the option which is most likely to result in erosion of the tubes in a heat exchanger.
Cooling water velocity too high.
Low pressure of the cooling water in the system.
Inadequate water treatment leading to scaling on the tubes.
Use of water with excessive temperature in the cooling system.
What is the recommended range for the pH-value for the water in a diesel engine cooling system engine cooling water be maintained?
Between 4 and 6.
Between 6 and 8.
Between 7 and 10.
Between 10 and 12.
Consider a 450 volt, 859 kW rated generator that has not been in operation for several weeks. Prior to starting, insulation resistance readings are taken. The minimum acceptable insulation resistance reading on the main stator winding to allow you to proceed with running the generator is:
100 000 Ohms.
500 000 Ohms.
1 000 000 Ohms.
2 000 000 Ohms.
During regular inspection of alternator windings it is found that windings are always covered with a heavy oil film coming from the atmosphere surrounding the auxiliary engine. After cleaning with an approved solvent, what should be done?
Improve material of intake air filters.
Increase the frequency of winding inspections.
Install additional ventilation to the auxiliary engine room.
Change the oil used in the auxiliary engine to a higher quality grade.
In accordance with SOLAS and other international regulations, certain important machinery functions, such as operation and control of the steering gear and propulsion machinery, must be tested at specified times. When should these tests be carried out?
Only after any malfunction or failure of the machinery.
Once a year during the dry-docking of the ship.
Prior to arrival and departure from port and following maintenance.
Every time the ship enters a new operational area.
Watch keeping engineers shall have a minimum of knowledge of the vessel’s engine room and operation of its functions prior to being accepted as Engineer on Duty, and shall acknowledge his familiarization with the equipment by signing a check list listing all units he shall be able to operate. Minimum knowledge is:
He shall have all the knowledge as listed in the other alternatives.
He shall be able to operate the emergency fire pump, steering gear and main engine.
He shall be familiar with the operation of auxiliary systems only.
He shall know how to operate the engine monitoring system and communicate with the shore team.
When you join a new ship, how are you informed about safety rules, alarm instructions and your own duties in case of an emergency?
By verbal instructions from the senior officer on duty.
By muster lists exhibited in conspicuous places.
By an emergency response video played during the initial briefing.
By an onboard emergency manual handed out to all crew members.
What does the term «Dead Ship» mean?
«Dead Ship» refers to a ship that has been abandoned at sea.
«Dead Ship» describes a ship that is no longer in service and has been decommissioned.
«Dead Ship» means the ship’s crew has been relieved of duty for a certain period.
«Dead Ship» means that the machinery and boilers are inoperational due to lack of electrical power.
After water-washing the turbocharger exhaust side it starts to vibrate even though it was operating normally prior to the washing procedure. What is the most likely cause of this problem?
The rotor blades are damaged or the blades are not properly cleaned.
The exhaust temperature is too high, causing thermal expansion.
The lubrication oil pressure is insufficient, causing the bearings to malfunction.
The exhaust valve timing is incorrectly adjusted after the washing process.
Why shall a duly qualified officer supervise any potential polluting operation?
To avoid pollution.
To ensure that the operation is completed in the shortest time possible.
To maintain the efficiency of the operation and reduce costs.
To guarantee that all crew members follow the same procedure.
An electrical power emergency source in a ship is required because:
It ensures the continuous operation of non-essential systems during normal operation.
It provides backup power only for the navigation equipment in case of failure.
It satisfies the SOLAS (and other) requirements for ship safety.
It is necessary to maintain the ship’s lighting and air conditioning systems during maintenance.
An earth fault exists on the blue line of a 100 A bilge pump circuit. A second earth fault occurs on the yellow line of a 10 A ventilation fan circuit. Both systems are supplied from the ship’s 440 V supply. The likely outcome is that:
A short circuit occurs between earth faults and the ventilation fan fuse blows.
The bilge pump circuit continues to operate normally while the ventilation fan circuit is disconnected.
Both fuses blow simultaneously, cutting off power to both circuits.
The earth faults cause the ventilation fan to stop, but the bilge pump operates without issue.
The insulation resistance (IR) to earth of a new galley hot-plate is measured to be 30 Mohm. When three identical hot-plates on the same supply are tested together their combined IR will be:
90 Mohm.
15 Mohm.
10 Mohm.
30 Mohm.
Generators must be synchronised before they can operate in parallel. During synchronising, the incoming generator should be running slightly «fast» compared to the bus bar frequency. This is to ensure that the:
Incoming machine picks up as a generator.
Incoming machine matches the load requirements of the system.
Bus bar frequency increases to match the incoming generator.
Generator does not cause a short circuit when synchronised.
The Base Number of a lubricating oil is an indication of which of the following?
The alkalinity of the oil.
The viscosity of the oil.
The specific gravity of the oil.
The thermal conductivity of the oil.
Why are duplex filters usually employed in the lubricating oil system of an auxiliary diesel engine?
Changing of the filter element can be carried out without interrupting engine operation.
Duplex filters are more effective in removing larger particles than single filters.
Duplex filters have a higher flow rate, allowing for better lubrication.
Duplex filters are easier to maintain and require less frequent servicing.
The bilge holding tank level is being reduced by discharging through the OWS. What action should be taken when the oil/water interface in the holding tank is reached?
Continue pumping until the bilge holding tank is completely empty.
Stop the OWS and pump the oil to the incinerator tank.
Switch to another holding tank and continue discharging.
Open the overboard valve to discharge the remaining contents directly into the sea.
What is an effective means of measuring the total dissolved solids in boiler water?
Conductivity test.
pH level test.
Oil content test.
Temperature measurement.
What will you serve seafarers who has been exposed to cold?
Warm nutritious drinks.
Cold beverages to help lower their body temperature.
High-sugar snacks to quickly restore energy.
Alcoholic beverages to help them relax and warm up.
Why should engine and boiler rooms be kept clean and any oil spillage cleaned up immediately?
To improve the aesthetic appearance of the engine room.
To reduce risk of fire and the risk of slipping.
To ensure smooth operation of machinery and increase efficiency.
To prevent the buildup of rust and corrosion on machinery.
Under what circumstances would you remove guards and safety devices from machinery?
During overhaul and maintenance procedures.
When machinery is not in use for an extended period of time.
When the machinery is being inspected for cosmetic purposes.
To increase the efficiency of the machinery during normal operation.
Which electronic component does this graphical symbol represent?
Potentiometer, 10 kilo-ohms.
Resistor, 10 kilo-ohms.
Capacitor, 10 microfarads.
Inductor, 10 microhenries.
Which electronic component is this graphical symbol illustrating?
Zener diode.
Light-emitting diode (LED).
Light-dependent resistor (LDR).
Schottky diode.
What is the minimum number of portable fire extinguishers that must be carried on ships of 1 000 GRT and above?
3.
5.
7.
10.
What are class «C» bulkheads?
Bulkheads constructed of approved non-combustible materials but do not meet any of the requirements relative to smoke and flame nor limitations relative to temperature rise.
Bulkheads made of fire-resistant materials and tested for both smoke and flame resistance.
Bulkheads that are constructed with non-combustible materials and can withstand high heat for extended periods.
Bulkheads that are designed to prevent the spread of fire for a specified duration of time.
Which diagram is the symbol for a THYRISTOR?
Figure 1.
Figure 2.
Figure 3.
Figure 4.
A faint is a brief loss of consciousness of no more than momentary duration caused by a temporary reduction in the flow of blood to the brain. How to prevent anyone from fainting?
Tell the person to sit down and lean forward with the head between the knees taking deep breaths.
Have the person lie down and elevate their legs to improve circulation.
Ask the person to drink a cold beverage to increase blood flow to the brain.
Encourage the person to stay upright and move around to avoid dizziness.
Feed check valves for the main and auxiliary boilers are normally of the double shut off type with one screw lift valve and one screw down non-return valve. What is the main function of the non-return valve?
To prevent the steam and water in the boiler from discharging out through the feed line if the feed line fractures or a joint in the line blows.
To allow steam to flow freely into the boiler when needed.
To maintain a constant pressure in the feed line regardless of fluctuations.
To regulate the flow of water from the feed pump to the boiler.
What is the correct range for the pH-value for the water in an oil fired steam boiler?
9-11.
7-9.
5-7.
11-13.
The packed gland on a centrifugal pump is leaking even though the gland has been «nipped up». What is the correct action to take to stop the leakage?
Tighten the gland further to reduce leakage.
Apply a sealant to the packing material to prevent leakage.
Replace the entire pump with a new one.
Re-pack the stuffing box loosely with the correct size packing at the earliest opportunity.
What is meant by the term «two stage air compressor»?
A compressor in which the compressed air from the first stage is further compressed in the second stage before being delivered to the air receiver.
A compressor with two independent compressors working in parallel.
A compressor with two outlets delivering compressed air at different pressures.
A compressor that compresses air in two steps, but the air is not stored in the air receiver.
When using portable ladders during work activities onboard a ship what precautions should be taken?
Secure the ladder top and bottom and have a shipmate standing by while you are working on the ladder.
Only use the ladder if it is secured at the bottom, no need for a shipmate to stand by.
Ensure the ladder is placed on a flat surface but no other precautions are necessary.
Place the ladder at an angle of 90 degrees to the surface and use it without additional support.
What would be the most likely cause of a smell of «rotten eggs» in the upper casing of the engine room?
A malfunctioning bilge pump causing a build-up of organic material.
A leak of exhaust gas from a boiler or diesel engine exhaust.
A spillage of sulfur-based chemicals in the engine room.
A leak of fuel oil in the engine room causing a chemical reaction.
Which of the options given is one of the main responsibilities of a watch-keeping engineer?
To inform the Chief Engineer of any situations that cannot be controlled during the watch.
To take over from the Chief Engineer at the start of the watch and manage all machinery.
To monitor the engine room without reporting any issues unless requested by the Chief Engineer.
To carry out repairs to any machinery without reporting the issue to higher authority.
Which of the following instruments is normally part of a control-loop?
Pressure gauge.
Flow meter.
Transducer.
Thermometer.
Measuring instruments must be routinely calibrated. What is meant by instrument calibration?
Comparing input and output values against a documented standard.
Adjusting the instrument to match any value given by the manufacturer.
Ensuring the instrument is in working condition by testing its response.
Replacing worn-out components to improve accuracy.
How do we recognize a leaking fuel injection valve during testing?
The pressure falls off on the pressure gauge when trying to hold the pressure in the injector below normal opening set pressure.
The injector emits a visible spray when no pressure is applied.
The injector makes a louder than usual noise during operation.
The fuel temperature rises significantly during injection testing.
When having a fire alarm during normal working hours, what immediate actions should be taken?
Act according to instructions given in the fire plan.
Leave the area immediately without waiting for instructions.
Wait for confirmation from the Chief Engineer before taking any action.
Begin evacuating the crew without following any planned procedure.
From the statements given in the answer options, choose the one which is most accurate in relation to the operation of water-tube boiler and fire-tube boilers?
Fire-tube boilers are more efficient than water-tube boilers and contain less water.
Water-tube boilers are more compact and require less maintenance than fire-tube boilers.
Fire-tube boilers are more prone to damage when run dry compared to water-tube boilers.
Water-tube boilers are more efficient and generally contain less water than fire tube boilers. They are prone to major damage when run dry during operation.
With reference to using centrifuges for cleaning fuel and lubricating oil, what is the difference between a purifier and a clarifier?
In a clarifier only solids are removed from the oil, whereas in a purifier both solids and water are removed from the oil.
A clarifier removes both solids and water from the oil, whereas a purifier only removes solids.
A clarifier removes more water than a purifier, but both remove solids.
A purifier works only with fuel oil, while a clarifier works with both fuel and lubricating oils.
When operating two centrifuges in series, in a purifier and clarifier arrangement, what is the purpose of the clarifier?
To remove water from the oil before it enters the purifier.
To improve the efficiency of solids removal.
To filter out any remaining impurities from the oil after purification.
To remove any air bubbles from the oil before it enters the purifier.
Are there any restrictions about how much sludge we can pump overboard on the sea voyage?
Maximum is 30 litres per nautical mile and total is 1/30 000 part of full cargo on the ballast voyage.
Sludge may only be discharged when the ship is in port and not underway.
Sludge discharge is unrestricted as long as it is properly filtered before discharge.
Sludge can only be pumped overboard in international waters, but no specific limits are set.
What would the First Engineer require?
The First Engineer would require a review of the safety protocols.
The First Engineer would require a new set of tools.
The First Engineer would require an inspection of the heating coils.
The First Engineer would require a team meeting.
How many buoyant smoke signals are carried in each lifeboat?
1.
2.
3.
4.
What is the minimum working pressure of the international shore connection?
1 N/mm2.
0,5 N/mm2.
2 N/mm2.
1,5 N/mm2.
B Class divisions in ships are constructed so that they are capable of preventing the passage of flame to the end of a standard fire test held for:
30 minutes.
60 minutes.
15 minutes.
45 minutes.
Which of the survival craft listed below is equipped with a buoyant line, not less than 50 m in length, of sufficient strength to tow a liferaft?
Lifeboat.
Rescue boat.
Survival capsule.
Inflatable raft.
Give the meaning of the following symbol:
EPIRB.
Emergency Personal Identification Rescue Beacon.
Emergency Protocol Information Relay Beacon.
A hand flare must have a burning period of at least:
30 Sec.
1 Min.
2 Min.
5 Min.
Which ships does the ISM code apply to:
All passenger ships, all cargo ships of 500 GRT or above.
Only cargo ships of 1 000 GRT or above.
All fishing vessels.
Only passenger ships over 300 GRT.
When is a machine «securely guarded?»
When it is turned off and unplugged.
When it is fitted with a guard or similar device which prevents foreseeable contact between a person, his clothing or items held in his hands, whilst it is in operation.
When it is monitored by a safety officer.
When it is enclosed in a locked room.
Which of these weapons are widely available and commonly used by criminals and terrorists to further their aims?
Gun.
Nuclear bomb.
Chemical weapon.
Biological agent.
When handling drugs…
Wear skin protection and a facemask.
Only wear gloves.
No special precautions are needed.
Wear a lab coat only.
Why do some diesel engine manufacturers recommend machining the valve spindle sealing surface with a half degree difference to the valve seat angle?
To improve valve sealing by compensating for pressure and temperature effects on the valve during engine operation.
To reduce manufacturing costs.
To increase the engine’s power output.
To simplify the assembly process.
Thermistors are temperature sensitive devices. A positive temperature coefficient thermistor will typically have:
Relatively non linear characteristic.
A linear characteristic.
A constant resistance across all temperatures.
A negative temperature coefficient.
On finding a person apparently unconscious in a High Voltage switch room, which of the following should be done?
Immediately approach the victim to check for responsiveness.
Raise alarm, identify means of isolation and apply before approaching victim.
Call for medical assistance without taking any further action.
Attempt to revive the victim using CPR.
A mechanical seal, consisting of carbon and ceramic seal rings, is to be fitted to a centrifugal pump shaft. What is the most likely result of not being extremely careful when fitting this type of seal?
The seal rings are brittle and can be easily chipped or damaged.
The seal will wear out faster than expected.
The pump will operate at a lower efficiency.
The installation will be easier and quicker.
During maintenance work on a main diesel engine the fuel injection valve is found to be jammed in the pocket in the cylinder cover. Which of the procedures given in the options should be followed in order to complete the work?
Attempt to free the jammed valve using a hammer.
Remove the valve and continue operating the engine without it.
Replace the complete cylinder cover with a spare unit and land the cover with the jammed valve ashore for repair in a specialist workshop.
Use a welding torch to cut the valve out of the cover.
A large electric motor is being removed from a main seawater pump with the aid of the engine room crane. Which is the best method of starting the lift from the options given?
Use a suitable chain block suspended from the crane hook to «break» the motor free after slackening all of the retaining bolts.
Pull the motor straight up using the crane without any additional equipment.
Use a forklift to lift the motor while the crane is in position.
Start lifting the motor immediately after removing the bolts.
An air compressor is being refitted in the engine room. The compressor and motor are coupled using a flexible coupling and are mounted on a common «skid» which is fixed to the deck with resilient mountings. Which of the statements, from the options given, relating to the alignment of the motor and compressor is true?
The motor and compressor should be aligned by adjusting the resilient mountings only.
No shims are needed if the skid is level.
The alignment can be checked after the coupling is bolted up.
Shims should be fitted between the motor and compressor feet and the skid to ensure correct vertical, horizontal and parallel alignment of the coupling halves before it is bolted up.
The ring expander for removal and refitting of an air compressor’s piston rings is found to be broken and unusable. The work cannot be delayed until a replacement is obtained. Which of the methods given in the options should the ship’s engineers use to complete the work?
Fabricate a conical guide from tin plate or similar with the large diameter just bigger than the compressor piston so the rings can be eased open for fitting.
Use a screwdriver to pry the rings open during installation.
Attempt to fit the rings without any tool.
Wait for the replacement tool to arrive before proceeding.
The end covers for a heat exchanger are held in place by a number of brass studs and nuts. Which of the tools given in the options is best suited for removal and tightening of the nuts?
Adjustable wrench.
Ring spanner or socket.
Pliers.
Flathead screwdriver.
When a ship’s derrick or crane lifts a weight off the deck of a ship, from which position can the centre of gravity of the weight be considered to act?
From the head of the derrick or crane.
From the deck of the ship.
From the midpoint of the weight.
From the base of the derrick or crane.
What is the anticipated rolling period of a ship with a large initial Transverse Metacentric Height (GM) and would there be any associated dangers to consider?
Long slow rolling period with no significant dangers.
Moderate rolling period with increased stability.
Short sharp period of roll associated with breaking lashings and shifting cargo.
No rolling period as the ship remains stable.
The Ziegler-Nichols method is used in control engineering when setting up the system. Which of the system components given in the options would this method be applied to during initial set up?
PID controller for tuning.
Actuator for calibration.
Sensor for adjustment.
Feedback loop for optimization.
With the set point at the actual desired value, a temperature control system is giving an unacceptably large offset (difference between set point and measured value) on high load resulting in a low system temperature. Which of the actions given in the options should be taken to reduce this effect and therefore achieve closer control of the temperature?
Increase the integral time of the controller.
Reduce the width of the proportional band for the controller.
Decrease the gain of the controller.
Add a delay to the control response.
The refrigeration system for the ship’s provisions consists of a number of cold rooms served by a central refrigeration system. The evaporator coils for the vegetable room are found to be frosting up even though the room is down to temperature and the liquid line valve has closed. Select, from the options given, the automatic control component which is likely to be malfunctioning and so cause this condition.
Back pressure control valve.
Expansion valve.
Thermostat.
Liquid line solenoid valve.
As part of a survey of a main steam boiler it is necessary to check the condition of the steam drum. What would be the preferred method for checking drum shell thickness in such a situation?
Use ultrasound equipment.
Visual inspection with a boroscope.
Magnetic particle testing.
Hammer testing for soundness.
An accumulation test may be necessary for a steam boiler following repairs or modifications. Which of the given options does the accumulation test check?
The efficiency of the boiler’s heat exchange.
The integrity of the boiler’s structure.
The capacity of the safety valve to relieve pressure.
The performance of the feedwater system.
During «dry lay up» of a main water tube boiler it is necessary to maintain a dry, low humidity environment in the water spaces. Which of the chemicals given in the options would best achieve this condition?
Silica gel.
Sodium hydroxide.
Calcium carbonate.
Ammonium sulfate.
Chemical boiling out is one method that is used for cleaning the waterside of a steam boiler. Select from the given options the likely circumstances under which this procedure would be considered necessary?
Contamination of the boiler water by oil.
Regular maintenance after a specified period.
Scaling due to hard water deposits.
Routine cleaning before a survey.
A deadweight tester is used to check and calibrate a pressure gauge. The tester consists of a hydraulic pump and a hydraulic chamber and balance weight system. After completing the calibration of the pressure gauge, the hydraulic pressure should be relieved before removing the weights. Select, from the options given, the main reason for this requirement.
To protect the piston in the hydraulic system from possible impact damage as it may reach the end of its stroke.
To ensure accurate readings on the pressure gauge.
To prevent leakage of hydraulic fluid.
To allow the system to cool down before disassembly.
Vibration analysis is often used as a conditioning monitoring tool onboard ship as part of the approved planned maintenance system. Many vibration measuring instruments are fitted with a harmonic filter/analyser. How would these filters normally be used during vibration measurement on a centrifugal pump?
To measure the overall vibration level of the pump.
To isolate a single frequency of vibration associated with one of the pump’s components.
To eliminate all vibrations above a certain threshold.
To average the vibration readings over time.
Compressed air for instrument and control purposes needs to be of high quality. In order to condition the air, filter modules are usually fitted to remove the contaminants. If there is evidence of oil carry over to the final elements in the instrumentation air system, what is the most likely cause?
The coalescer module is saturated and requires renewal.
The air compressor is malfunctioning.
The final filter is clogged.
The system pressure is too low.
The recognised definition of High Voltage equipment is anything that operates at over which of the following levels?
500 Volts ac or 750 Volts dc.
1 000 Volts ac or 1 500 Volts dc.
1 200 Volts ac or 1 800 Volts dc.
600 Volts ac or 900 Volts dc.
High Voltage (HV) cables are smaller than low voltage cables for a given power rating. Why is this?
The HV cable carries a smaller current and therefore requires less copper.
The insulation required for HV cables is thinner.
HV cables are made from lighter materials.
HV cables operate at a higher temperature.
How would you report containers with dangerous goods lost overboard?
My vessel has lost containers with dangerous goods of IMDG Class….in position…»
We have misplaced some cargo, please advise.
Containers have fallen overboard, no further details available.
Lost some containers, but they are not hazardous.
What do you understand by the initials: EPIRB?
This means: Emergency Position Indicating Radio Beacon.
This means: Emergency Personal Identification Rescue Beacon.
This means: Emergency Protocol Information Relay Beacon.
This means: Emergency Power Indication Radio Beacon.
Select the one option which correctly completes the following statement: A portable ladder…
Should be secured before working from it.
Can be used without any safety measures.
Should only be used in dry conditions.
Must be at least 10 feet long.
Did you find mistake? Highlight and press CTRL+Enter
